Designing a Multi-Level Patio with Retaining Walls

A flat yard is a clean canvas. A sloped one is a puzzle really worth solving. Multi-degree patios flip uneven ground into functional outdoor living, sewing at the same time areas for eating, fireside lounging, and gardening whereas controlling erosion and water. The trick is balancing construction and type. Retaining walls do the heavy lifting, however the supplies, the base, and the drainage decide whether or not it lasts many years or drifts through the second wintry weather.

I even have reduce into grades that looked tame from the kitchen window and discovered soils that behaved very in another way once excavated. I actually have watched pleasing patios heave because a wall lacked a drain, and I even have visible modest budgets stretched accurately by using hanging the right ingredients the place they be counted most. If you are thinking about stepping your yard into terraces with pavers and conserving walls, there's a clean path to a sturdy, good-looking consequence.

Read the backyard previously you draw the plan

Walk the assets and seek for telltale indicators. Does water song across the garden all through a complicated rain and settle close the house? Are there trees with shallow roots in which you desire the top patio? Are you going through fill soil from earlier creation or undisturbed local flooring? These details, no longer the coloration of concrete pavers or the shape of interlocking bricks, determine the backbone of the build.

On a recent undertaking, the property owner desired two levels: a grilling deck by the returned door and a lessen patio with a fire bowl. The grade fell forty six inches from condominium to fence. We may just have forced one extensive wall, however that might have seemed intense and required a taller shape with geogrid reinforcement and a allow. Breaking it into 3 steps, each with quick holding walls less than 24 inches, let us spread the burden, soften the view, and positioned plantings among areas. The drift felt organic, and the constitution matched the soil.

If you do not anything else in the planning part, put a while into elevations. Borrow a laser degree or a water degree and determine the accomplished height of each patio, the accurate of every wall, and the bottom of the bottom layers. Everything that follows is easier for those who realize your heights within 1/2 an inch.

What retaining walls exceedingly do

Retaining partitions do not carry up patios. They maintain lower back the earth that could in any other case droop onto your patio. That difference subjects. Walls resist lateral soil power and manage water behind them. When you take into account that, you layout the wall as a drainage issue first and a ornamental aspect 2d.

Segmental block preserving walls, the kind that use interlocking units with a textured face, are the default for multi-degree patios. They move up really quickly, curve gracefully, and address freeze-thaw cycles if developed excellent. Mortared masonry walls work too, however they demand rigid footings and careful keep watch over joints to avert cracking. Timber partitions are you'll be able to in some areas, yet they have a finite lifespan and might seep tannins into surrounding soil. Dry-laid stone looks undying and, within the palms of an skilled mason, outlasts maximum of us, yet it eats exertions. Your budget and taste steer this possibility.

Behind any protecting wall deeper than a garden edging, you want a drainage layer. Think clean, angular gravel, no longer pea stone. The gravel creates a chimney for water to drop to a perforated drain pipe, which routes water away from the wall’s base. Without that, hydrostatic power builds up, particularly in clay-heavy soils, and your wall starts offevolved to rotate ahead, a sluggish-action failure that is easy to miss until it's far high priced.

Choose your pavers for the process they should do

For patios, concrete pavers are long lasting, greatly conceivable, and uncomplicated to substitute one after the other if a section settles. Interlocking bricks, the small rectangular gadgets you notice on driveways and plazas, spread masses smartly and lock together tightly while edged in fact. Natural stone is appealing, but irregular flagstone calls for a knowledgeable hand to are compatible, and the thickness adjustments complicate precise compaction.

Consider how each and every stage could be used. If the slash terrace will every so often preserve a motor vehicle for part-backyard access, build it like a driveway. That capacity more base intensity and quite often a the several paver spec with a thicker profile and tighter joints. For a dining terrace, you may prefer a tumbled concrete paver with a softer facet. For a revolutionary appearance, large-structure slabs can paintings, but they call for a flatter, greater precise base. Slabs don’t forgive.

Permeable pavers deserve a look if your backyard is soggy or your municipality encourages stormwater infiltration. They have open joints stuffed with small stone that channel water into a deep, fresh aggregate base as opposed to sending it in your downspouts. I actually have used permeable procedures on cut back terraces that another way may have essential a trench drain. They lower puddling and, if maintained, hinder ice at bay in shoulder seasons. The tradeoff is widely used vacuuming of joints and a base design that can value more up entrance.

Stairs and transitions that feel human

The heartbeat of a multi-stage patio lives inside the transitions. If the stairs are awkward or the stairs too tall, the gap feels like a chore. The candy spot for riser peak is 6 to 7 inches, with treads as a minimum 12 inches deep, extra if the step doubles as informal seating. On curves, retailer risers regular. I once had to rebuild 3 steps seeing that a unmarried riser came out eight inches tall. People stumbled whenever they carried a plate.

Build steps as component to the wall equipment, not as an afterthought. Many segmental block strains comprise step sets and coping portions that integrate with the conserving walls, locking classes mutually and simplifying the structure. When stairs split a wall, use geogrid or thicker units to avoid the returns from spreading.

On longer runs between degrees, carve touchdown pads wherein you'll be able to. A small landing is a mental relax, and it gives you a spot for a planter or a bench. We generally set a 4 through 6 foot intermediate pad among two flights, employing the related pavers as the patio so the trail belongs to the total design.

Drainage and base: the invisible heroes

Water wins at any time when that's neglected. Your multi-point patio is a hydrology challenge disguised as a outside makeover. Start via giving water a course down and away. For the wall, that suggests a perforated pipe at the base, wrapped in fabrics and enveloped in washed stone. Slope the pipe in any case 1 percent toward a trustworthy discharge factor. If the yard pinches you right into a corner, be mindful a sunlight outlet farther downhill, a dry smartly, or a tie-in to an accepted storm line. Never point drains toward a neighbor’s fence.

Under the pavers, the base subjects extra than the face. A traditional patio will get 6 to 8 inches of compacted base mixture, extensively also known as street base or crusher run. A driveway terrace wants 10 to 12 inches or extra, relying on soil. Spread in lifts of two to three inches and compact every carry with a plate compactor except the tone transformations and the computer dances. You are listening for tightness. If the ground is a sponge, undercut the muck and exchange it with a woven geotextile and extra base. Skipping material in clay is a commonly used shortcut that bites later when fines pump up into the base and the patio will get tender.

On most sensible of the bottom, a 1-inch bedding layer of concrete sand or a permeable open-graded chip sets the pavers. Screed it flat, set the models, cut the borders, then compact the field with a plate compactor equipped with a pad. Sweep in joint sand or stone, compact again, and sweep yet again. Edge restraints pin the entirety, either with concrete curbs, connection to the retaining wall, or powerful plastic edging spiked into the bottom. A patio devoid of edges is a deck of playing cards without a field.

Retaining wall fundamentals you should not skip

Start with a trench deep enough to bury at the very least 10 % of the wall’s peak plus the base layer. For a 24-inch wall, I purpose for a 6 to 8 inch compacted gravel base underneath the primary path. Perfectly stage the primary direction entrance to to come back and edge to facet. An out-of-stage base direction telegraphs error upward, and you turn out shimming each block.

Backfill with refreshing stone, no longer airborne dirt and dust, for the 1st 12 inches at the back of the wall. That stone column relieves rigidity and speeds drainage. For partitions above 30 to 36 inches or maintaining again a steep slope, upload geogrid at designated durations, sometimes each and every two or 3 classes, extending again into the soil as a long way because the wall is tall. Think of geogrid as the horizontal wings that make the wall and backfill act as one mass. Most block manufacturers publish charts for grid placement dependent on wall height and soil fashion. If your wall tactics 4 feet, look at various local codes. You may well desire an engineer’s stamp and a permit.

Stepping partitions for terraces introduces a further layer. Do not stack walls quickly on higher of each other. Set the top wall to come back a long way ample so its load does not bear at the lessen wall. As a rule of thumb, the setback should be at least twice the peak of the scale down wall, measured from the face of the cut down wall to the toe of the higher. Plantings among stages aid deal with runoff and melt the geometry.

Integrating positive aspects with out bloating the budget

A multi-point patio invitations traits: a built-in grill, a seat wall, lighting tucked beneath capstones, probably a water feature to masks visitors noise. Choose one or two that count number maximum and fold their infrastructure into the construct when trenches are open. It is more affordable to lay conduit for low-voltage lighting and a gas line until now pavers lock the entirety in.

Seat walls paintings specifically smartly on top terraces, wherein the view opens up. Keep them round 18 to 20 inches tall. Cap them with a sleek, a little bit overhanging stone or a manufactured cap that we could worker's sit down comfortably. Fire positive aspects pair clearly with diminish patios wherein wind is less of a thing. If you pick gasoline, ventilate the enclosure and apply the burner producer’s spec for clearances. Wood-burning pits desire good enough distance from walls and overhanging branches, plus a spark display if regional codes require it.

If your funds is tight, invest in the base and the wall cores, then simplify finishes. I actually have swapped a expensive considerable-format paver for a mid-fluctuate concrete paver and kept sufficient to feature lighting fixtures and a second set of steps, which did greater for the space than the larger tile ever could have. The bones remember most.

A useful sequence that keeps surprises in check

Here is a condensed sequence I use to retailer multi-level projects on target and water managed even as the yard is torn open:

• Establish benchmarks with a laser. Mark complete heights for patios, wall caps, and thresholds. Confirm door clearances and slopes.
• Excavate for the bottom stage first, over-digging for base, walls, and drains. Stockpile topsoil one after the other from subsoil to reuse later.
• Install the lowest holding wall base, drain, and primary publications. Backfill with stone as you construct. Keep the ditch dry.
• Build the reduce patio base and screed rails, then pause. Shift to a higher wall up so drainage components can daytime to the level beneath.
• Repeat walls and bases stepping up the grade. Set stairs as you go so each and every path integrates.

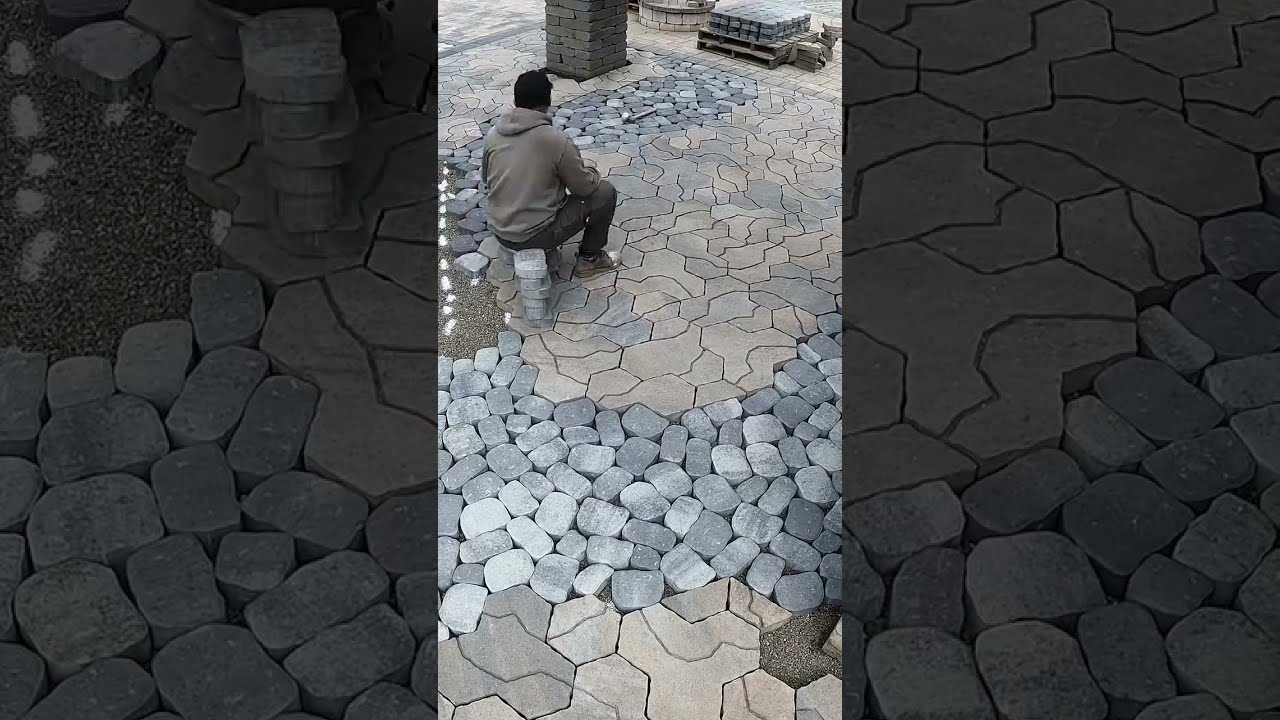

• Lay pavers from the ground terrace upward, chopping borders and setting up aspect restraints. Sweep in joint subject material and compact every single degree.
• Finish with caps, lighting, soil, and plantings between terraces to catch runoff and soften edges.

That is the best listing I allow myself on paper. On website, we live through it. Breaking the job into logical chunks continues water from pooling in open trenches if climate turns.

Materials that age nicely and upkeep that takes minutes

Concrete pavers from professional brands face up to deicing salts greater than they did two decades in the past, but even the most sensible sets benefit from moderation. If you should soften ice on steps, use calcium magnesium acetate or sand, now not rock salt. If you used permeable pavers, vacuum the joints once or twice a yr with a store vac or a specialized sweeper to continue voids open. For preferred paver joints, polymeric sand reduces weed incursion, but it seriously is not a miracle. Edges and cracks will sprout the occasional seed. A speedy scrape each few weeks beats an annual wrestle.

Retaining partitions ask for a glance after good sized storms. Check that outlets float freely and that mulch and leaves do no longer plug weep holes. If a wall develops a bulge or a step settles greater than 1 / 4 inch, act in the past it grows. Most early trouble trace back to water. Redirect downspouts that sell off near the wall, and avert the grade pitched in any case 1 / 4 inch in step with foot clear of structures.

Sealers on pavers are elective. I use them sparingly. They can enrich color and decrease staining less than a grill, however in addition they switch slip resistance and require reapplication each and every few years. Test a small enviornment first. Natural stone caps and treads incessantly gain from a breathable penetrating sealer that doesn't create a film.

Stone set up small print that separate crisp from clumsy

Cutting is the quiet craft in hardscape work. A considerate cutting plan reduces waste and maintains patterns coherent throughout steps and round curves. On curved terraces, fan the joints subtly and use pie cuts in which had to preclude skinny slivers that pop out over the years. When a patio meets a wall, tuck the minimize edges towards the face and store factory edges for borders and top-visibility runs. Wet saws save dust down and edges easy. On dry days, keep an eye on silica mud with water and a mask. Your lungs don't seem to be portion of the funds.

Coping stones on retaining partitions and steps are the jewellery. Dry-healthy them earlier adhesive. Stagger joints, store overhangs steady, and simplicity sharp corners with a stone dossier so that they do no longer capture wallet or skin. A small round-over on a step nostril feels more desirable underfoot and chips less.

Blending multi-ranges into the landscape

A stack of arduous edges can seem to be harsh if you happen to do not melt it. Planting beds among ranges do more than seem to be pretty. They soak up runoff and preserve the top terrace from feeling like a degree. Use crops that welcome warmth close pavers and do not mind meditated light. In my climate, I lean on ornamental grasses, lavender, and occasional-rising evergreens that cling structure in iciness. On tight terraces, planters with deep reservoirs add inexperienced without irrigation strains, they usually assist you to alter with the seasons.

Lighting lets the space breathe after darkish. Low-voltage LED strips beneath wall caps, small bullet furnishings grazing stone textures, and tiny step lights combine to create safety with no glare. Run further conduit and depart pull strings for long term circuits. You will thank your self when you add a spa or an out of doors kitchen down the road.

When to bring in an engineer or a seasoned crew

Most property owners can tackle a quick wall and a small patio with staying power and rented tools. Multi-degree initiatives add complexity. If your plan contains partitions taller than four ft, slopes steeper than 3:1, heavy clay or expansive soils, or proximity to structures and assets lines, a few hours with a geotechnical engineer pays for itself. They can specify base intensity, geogrid layers, and drainage that suit your soil. In several municipalities, engineered drawings aren't elective once a wall crosses a height threshold or helps a surcharge like a driveway or a pool.

Professional crews earn their stay on logistics as plenty as exertions. They be aware of tips to stage pallets so the system does no longer chew up your garden, methods to stay trenches dry in the time of a typhoon, and methods to hit grades within a quarter inch across thirty feet. If you break up the paintings, understand hiring out excavation and wall cores, then taking over paver laying and caps yourself. You get the significant architecture built excellent and get pleasure from the ending paintings that provides the space your touch.

Budget and time table devoid of kidding yourself

Multi-degree patios seem basic in renderings, however the earthwork, block count, and drainage push quotes increased than a unmarried point of the equal footprint. As a rough book, a user-friendly paver patio would land within the diversity of 15 to 30 money per sq. foot for materials and rented apparatus while you do the hard work. Add holding partitions and steps, and one can double that, rather with colossal-layout concrete pavers or organic stone caps. Professional installs differ by using region, but the wall element most of the time charges as plenty because the patio itself, often more.

Schedule with climate in thoughts. Aim to excavate and construct partitions throughout the time of a strong stretch, with tarps equipped. Working wet subgrade is fake economy. In colder areas, try to wrap compaction and base work formerly the ground freezes, then set pavers and caps right through a milder window. If you solely have weekends, degree paintings so you can lock in each and every stage earlier than rain. Leave open trenches at the conclusion of a Sunday, and Monday’s squall can undo your progress.

A case read: stepping a hillside without a fortress

A consumer with a 30 by using 45 foot outside sloped approximately five toes from the space down to a rear alley. They sought after a eating subject off the kitchen, a small herb lawn, and a scale down fire pit nearby of the maple in which young children played. We set 3 terraces: an top 14 by way of 18 foot dining patio, a middle 6 foot touchdown with a seat wall and herbs, and a shrink sixteen foot circle for the hearth pit. Each drop changed into about 18 inches, which stored risers completely happy and partitions modest.

We used concrete pavers with a textured face in two tones to define the areas with no dramatic borders. The partitions have been segmental gadgets with matching caps. The soil become a loam over clay, good to paintings however at risk of keeping water. We ran perforated drain pipe behind every single wall tier and tied them to a solid line that daylit to the alley, hidden in the back of a reveal of grasses. Steps were 6.seventy five inches tall with 14 inch treads, large enough to sit with a mug. We tucked low-voltage lights under the seat wall cap and on the step risers.

The consumer wished permeable pavers at the lessen circle as a result of water used to pond there. We outfitted a 12 inch open-graded base and used three/8 inch blank stone in the joints. Even in spring thaws, that discipline stayed dry. The funds tightened, so we skipped the out of doors kitchen and set up a fuel stub for a destiny grill island. When they further it two years later, the conduit and gasoline have been ready.

That yard feels larger now, no longer as a result of we extra square toes, but on the grounds that each degree has a process and the transitions invite you down. The keeping walls do their silent work, and the pavers shop the ground straightforward.

Common pitfalls and the small habits that prevent them

The error repeat. Walls devoid of drain pipes, bedding sand spread too thick, pavers laid tight with out room for joint fabric, steps with inconsistent risers, and part restraints lacking alongside curves. Another typical oversight is surroundings patio elevations flush with door thresholds. Leave not less than 2 inches of step down from internal to outside and secure advantageous slope clear of the residence. A excellent patio that to come back-pitches into a basement is a short story with a undesirable finishing.

Small habits pay compound passion. Compact each elevate. Check stage on the 1st route of each wall block. Pull traces throughout the patio to capture humps early. Keep your saw blade sharp and rectangular. https://paversbayarea.com/pavers-monte-sereno/ Protect the bottom from rain in a single day with plastic. Sweep the performed surface absolutely prior to compacting to evade scuffing. These are ordinary, commonly repeated pointers considering the fact that they work.

Why multi-point hardscapes are really worth the effort

When a backyard drops faraway from the residence, a single platform most of the time feels disconnected, like a raft tied to shore. Stepping the grade creates intimacy close to the area and draw farther out. Retaining partitions and pavers give you regulate of the flooring and the water. Done effectively, the mission reads find it irresistible normally belonged, and it stays tight for decades with typical care.

Outdoor residing isn't really a catalog unfold. It is breakfast in solar on the upper terrace, herbs inside of reach of the kitchen, young people racing down extensive steps, and a fireplace that throws warmness in opposition to stone on a funky nighttime. The technical portions, from geogrid layers to permeable pavers and careful stone installation, make those moments low preservation and predictable.

Start with the grades, admire water, pick out constituents for his or her job, and build transitions that fit the method of us transfer. If you do, your multi-degree patio will really feel the two engineered and uncomplicated, a panorama that works as tough as it looks.
